Product Features
- Heavy-duty 13" x 40" gear head engine lathe for precision metalworking
- Powered by a reliable 230V single-phase electrical system
- Hardened and ground bedways for maximum durability and machining accuracy
- Universal gearbox allows quick and easy threading and feed changes
- Precision spindle supported by high-quality tapered roller bearings
- Wide spindle bore accommodates larger workpieces and bar stock
- Induction-hardened gears ensure smooth and quiet operation
- Adjustable spindle speeds for a wide range of turning applications
- Includes coolant system for extended tool life and improved cutting performance
- Foot brake system enhances operator safety and productivity
- Cast iron base construction minimizes vibration during machining
- Ideal for machine shops, tool rooms, maintenance departments, and educational facilities
- Camlock spindle system enables quick chuck changes
- Longitudinal and cross feeds support precision turning operations
Product Description
The JET GH-1340 Gear Head Lathe is a professional-grade metalworking lathe designed for precision machining, reliability, and industrial performance. Featuring a 13-inch swing over bed and 40-inch distance between centers, this engine lathe is ideal for machining shafts, bushings, threaded components, and custom metal parts in machine shops, maintenance facilities, and fabrication environments.
Powered by a dependable 230V single-phase motor, the GH-1340 delivers smooth operation with variable spindle speeds controlled through a rugged gear head transmission. Its hardened and ground bedways ensure long-lasting precision while minimizing wear during continuous production work.
The lathe includes a universal quick-change gearbox for simplified threading and feed adjustments, allowing operators to efficiently perform inch, metric, diametral, and module threading operations. A wide spindle bore and D1-4 camlock spindle improve versatility and simplify setup for larger workpieces.
Constructed with heavy-duty cast iron components, the JET GH-1340 provides exceptional rigidity and reduced vibration for superior surface finishes and accurate machining results. The integrated coolant system, foot brake, and precision controls make this lathe an excellent choice for professional machinists seeking dependable performance and long-term durability.
Specifications
| Specification | Details |
|---|---|
| Model | GH-1340 |
| Machine Type | Gear Head Engine Lathe |
| Swing Over Bed | 13 in. |
| Distance Between Centers | 40 in. |
| Swing Over Cross Slide | Approx. 7.5 in. |
| Spindle Bore | 1.5 in. |
| Spindle Mount | D1-4 Camlock |
| Spindle Speeds | Multiple Variable Speeds |
| Motor Power | 2 HP |
| Voltage | 230V |
| Phase | Single Phase |
| Bedways | Hardened & Ground |
| Gearbox Type | Universal Quick-Change Gearbox |
| Threading Capability | Inch, Metric, Diametral & Module |
| Tailstock Taper | MT-3 |
| Spindle Taper | MT-5 |
| Coolant System | Included |
| Brake System | Foot Brake |
| Construction | Heavy-Duty Cast Iron |
| Application | Precision Metal Turning & Threading |
What's Included
- JET GH-1340 Gear Head Lathe
- 3-Jaw Chuck
- 4-Way Tool Post
- Steady Rest
- Follow Rest
- Face Plate
- Coolant System
- Foot Brake Assembly
- Threading Gears
- Chip Tray
- Operator Manual
- Manufacturer Warranty

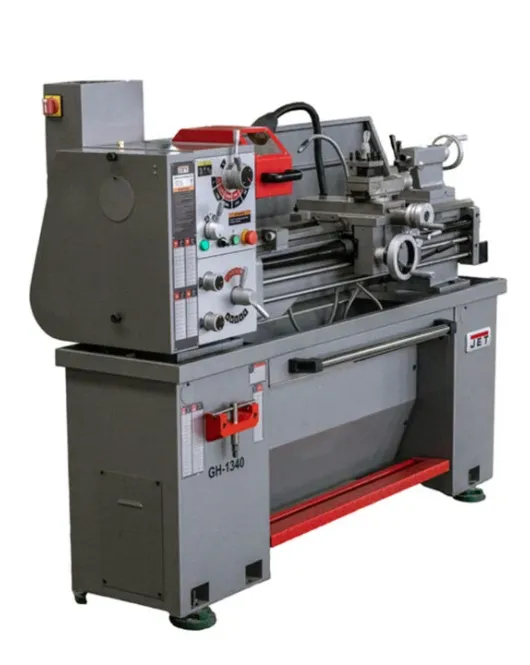

JET GH-1340 13" x 40" Gear Head Metal Lathe – 230V Single Phase Precision Engine Lathe
- Product Code: JET GH-1340 13 x 40 Gear Head Lathe 230V 1 Phase
Product Features
- Heavy-duty 13" x 40" gear head engine lathe for precision metalworking
- Powered by a reliable 230V single-phase electrical system
- Hardened and ground bedways for maximum durability and machining accuracy
- Universal gearbox allows quick and easy threading and feed changes
- Precision spindle supported by high-quality tapered roller bearings
- Wide spindle bore accommodates larger workpieces and bar stock
- Induction-hardened gears ensure smooth and quiet operation
- Adjustable spindle speeds for a wide range of turning applications
- Includes coolant system for extended tool life and improved cutting performance
- Foot brake system enhances operator safety and productivity
- Cast iron base construction minimizes vibration during machining
- Ideal for machine shops, tool rooms, maintenance departments, and educational facilities
- Camlock spindle system enables quick chuck changes
- Longitudinal and cross feeds support precision turning operations
Product Description
The JET GH-1340 Gear Head Lathe is a professional-grade metalworking lathe designed for precision machining, reliability, and industrial performance. Featuring a 13-inch swing over bed and 40-inch distance between centers, this engine lathe is ideal for machining shafts, bushings, threaded components, and custom metal parts in machine shops, maintenance facilities, and fabrication environments.
Powered by a dependable 230V single-phase motor, the GH-1340 delivers smooth operation with variable spindle speeds controlled through a rugged gear head transmission. Its hardened and ground bedways ensure long-lasting precision while minimizing wear during continuous production work.
The lathe includes a universal quick-change gearbox for simplified threading and feed adjustments, allowing operators to efficiently perform inch, metric, diametral, and module threading operations. A wide spindle bore and D1-4 camlock spindle improve versatility and simplify setup for larger workpieces.
Constructed with heavy-duty cast iron components, the JET GH-1340 provides exceptional rigidity and reduced vibration for superior surface finishes and accurate machining results. The integrated coolant system, foot brake, and precision controls make this lathe an excellent choice for professional machinists seeking dependable performance and long-term durability.
Specifications
| Specification | Details |
|---|---|
| Model | GH-1340 |
| Machine Type | Gear Head Engine Lathe |
| Swing Over Bed | 13 in. |
| Distance Between Centers | 40 in. |
| Swing Over Cross Slide | Approx. 7.5 in. |
| Spindle Bore | 1.5 in. |
| Spindle Mount | D1-4 Camlock |
| Spindle Speeds | Multiple Variable Speeds |
| Motor Power | 2 HP |
| Voltage | 230V |
| Phase | Single Phase |
| Bedways | Hardened & Ground |
| Gearbox Type | Universal Quick-Change Gearbox |
| Threading Capability | Inch, Metric, Diametral & Module |
| Tailstock Taper | MT-3 |
| Spindle Taper | MT-5 |
| Coolant System | Included |
| Brake System | Foot Brake |
| Construction | Heavy-Duty Cast Iron |
| Application | Precision Metal Turning & Threading |
What's Included
- JET GH-1340 Gear Head Lathe
- 3-Jaw Chuck
- 4-Way Tool Post
- Steady Rest
- Follow Rest
- Face Plate
- Coolant System
- Foot Brake Assembly
- Threading Gears
- Chip Tray
- Operator Manual
- Manufacturer Warranty
- Viewed: 93
- Availability: In Stock
$9,399.00
